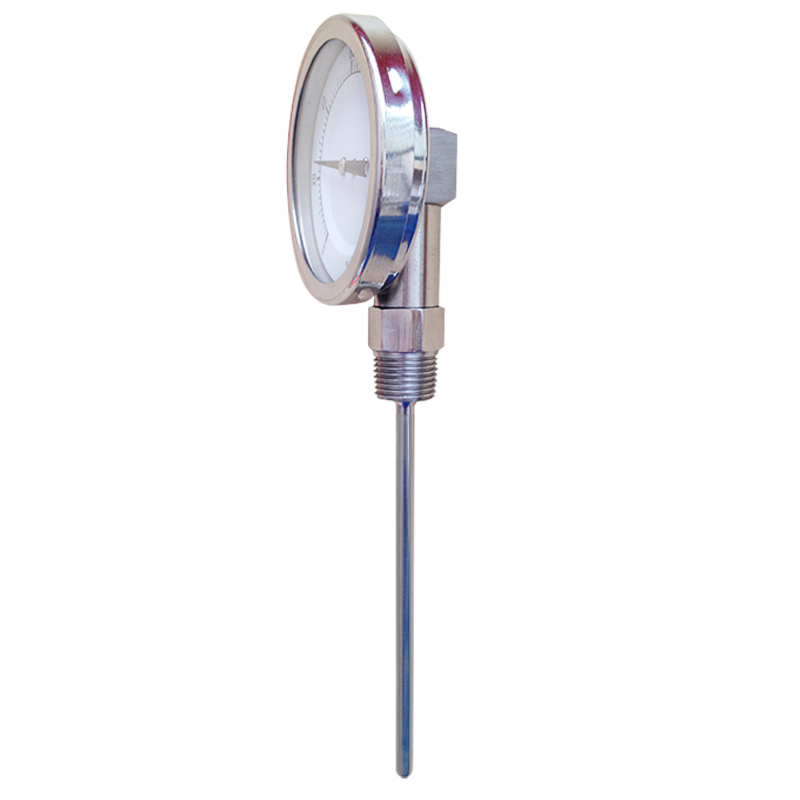

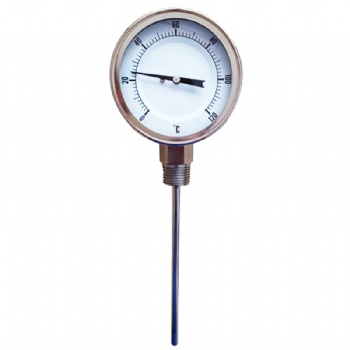

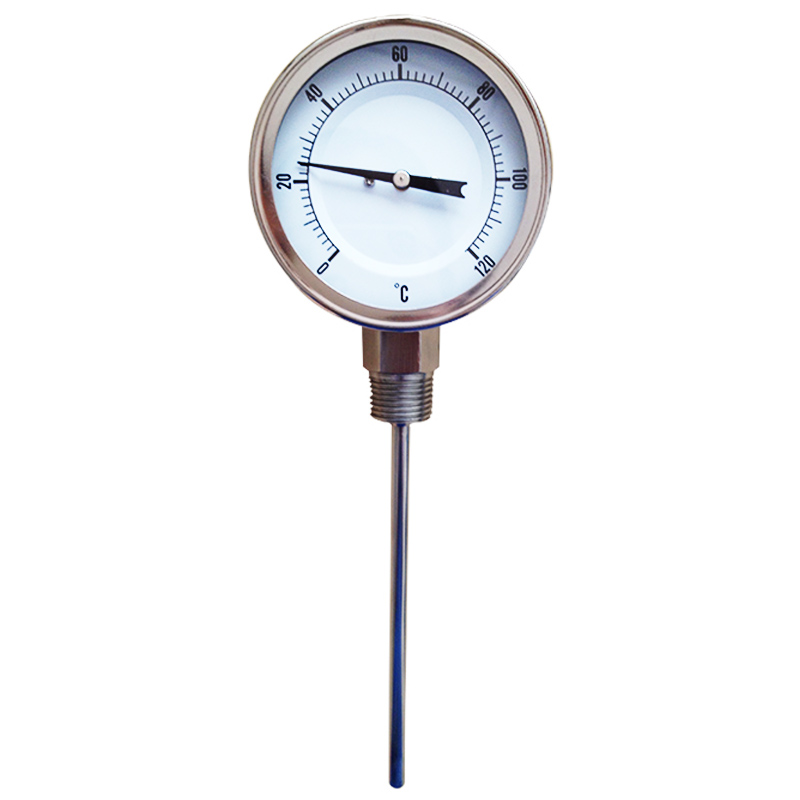

New Type Bottom Connection Bimetal Thermometer

    Brand: Hygauge
    Application: Widely
    Form: Bottom connection
    Case: Stainless Steel 304
DETAILS

Applications:
1. All Stainless Steel Bimetal Thermometers can be used in industrial applications, where particular importance is attached to measuring accuracy, reproducibility, easy reading and long-term stability.
2. With this Stainless steel  bimetal thermometer you can brew with confidence. The weldless fitting means it will mount to your mash tun, hot liquor tank, or kettle. The long probe means you will be able to get an accurate reading of the vessel temp in the middle.

Features:
Bimetal thermometer
1. Ranges:   -50 °C to 600 °C
                   Single or dual scale
2. Case & bezel:  Bayonet bezel or crimped ring
3. Dial Sizes:  2"(50mm), 2-1/2"(63mm), 3"(80mm), 4"(100mm), 5"(125mm), 6"(160mm)
4. Connection: bottom connection
                        1/4", 3/8", 1/2", NPT, BSP or BSPT
5. Stem:  Diameter 6mm, 6.35mm, 8mm, 9mm, 10mm & 12mm
                Length from 50mm to 1000mm
               SUS304 standard, SUS316 & 316L is available
6. Window: Glass standard, safety glass is available
7. Zero Adjustment:  External screw for back connection & adjustable angle
                                 Slotted zero adjustment for bottom connection
8. Max. Operating Press:  15Mpa (220psi)
9. Max. Process Temp.:  115% of full scale or 600°C
10. Accuracy: ±1.5%
11. Protection:  IP65

Product Specifications
  No
Item
Data
1
Name
New type bottom connection bimetal thermometer
2
Range
-20°C To +60°C, -50 °C to 600 °C, other is available
3
Dial size
2"(50mm), 2-1/2"(63mm), 3"(80mm), 4"(100mm), 5"(125mm), 6"(160mm)
4
Case material
All stainless steel, Black steel case, Zinc or chromed plated
5
Window
Glass standard, safety glass is available
6
Socket material
SS304 or Brass
7
Connection
1/4", 1/2", 3/8" NPT or BSP
8
Stem length
2"(50mm), 4"(100mm) or others
9
Zero adjustment at back of case
